MINI-Race
95cm glider
Minimum wingspan for maximum fun




Model:
MINI Race
Wingspan [mm]:
950
Aspect ratio:
7,7
Wingarea [dm²]:
11,7
Wing loading [g/dm²]:
16
Weight [g]:
190
Airfoil:
AG03 mod

Mini Race is a light, compact slope soarer for maximum fun on the hillside. Its application range extends from thermal flying up to aerobatics. Mini Race feels most comfortable in mild to moderate conditions.

The model is controlled by elevator, ailerons and flaps.

For more technical information have a look at our building instruction. (pdf-file)

Details:
Everything has its place on the radio board. (Here you see: Mini-Q).

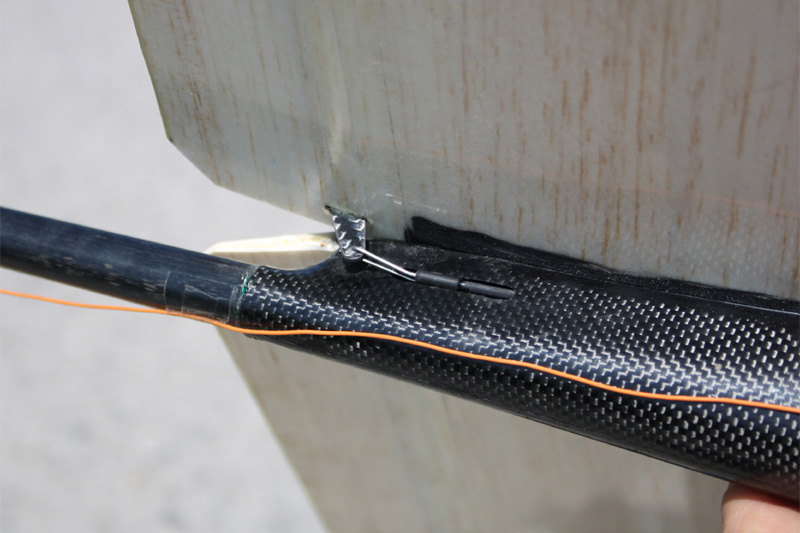

Controlling the ailerons
Carbon V-tail

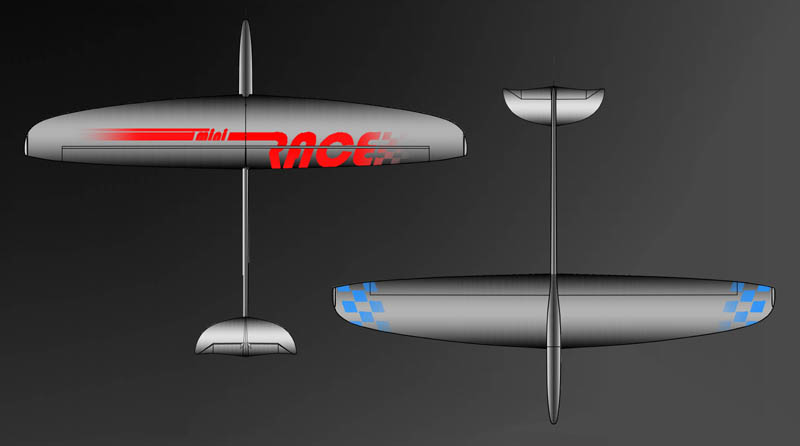

The graphic design on the wing is available in different colours:
white, yellow, orange, red, pink, blue, green
Top and bottom side can be painted in different colors.

Installation proposal for 2,4 GHz (inside carbon canopy), top view

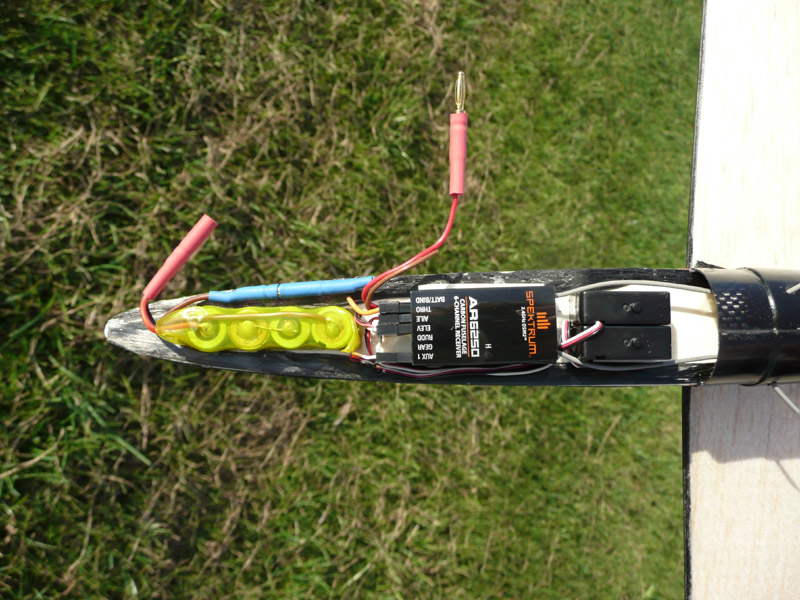

Installation proposal for 2,4 GHz (inside carbon canopy), view from below
Canopy made of kevlar for 2,4 GHz

ACCESSORIES

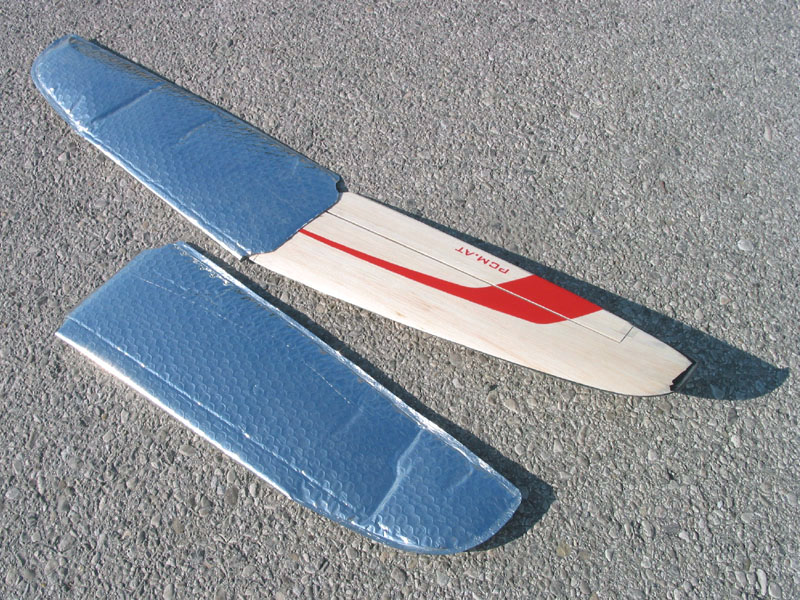

Protective bags for wing
4 pieces of GP NiMH accu 35AAAH fit perfectly into Mini.

Construction:
Fuselage:
  • CFR, three parts (boom, mid part, canopy)
Wing:
  • Shell made of balsa-sandwich with carbon fabric
  • Spar booms made of carbon / shear web made of balsa planked with glass
Stabilizer:
  • Shell made of balsa-sandwich with carbon fabric

Pre-fabrication:


  • Ailerons are cut and mounted with adhesive tape
  • Screw mounting for wing is pre-fabricated
  • Kitparts (radio board, pushrods, levers, etc.) are included in kit
  • Control surfaces on V-tail are cut and mounted with adhesive tape
  • The building instruction can be downloaded from the website
